Product uses:

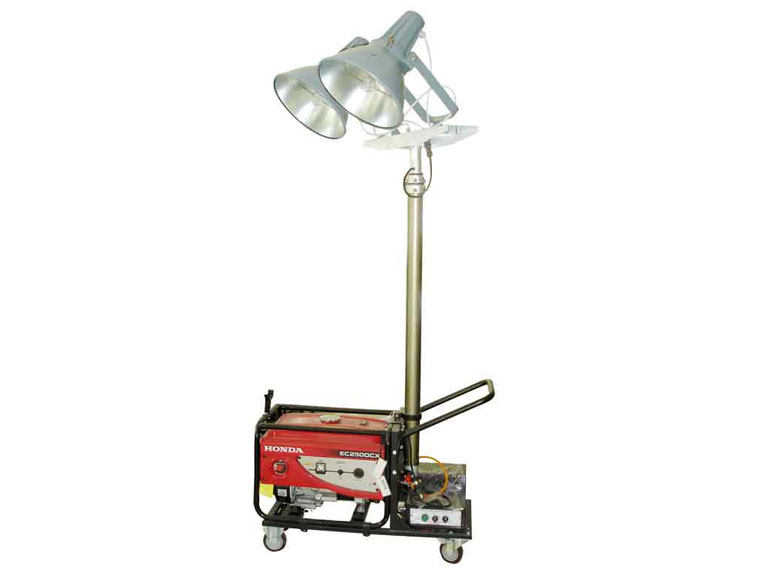

Pneumatic light tower
Applicable to various large construction operations, maintenance and rushing to repair, accident treatment, emergency service and disaster relief and other sites. It can meet the needs for lighting of large area and high brightness.
Details:
*2 Hps lamp lamps with 400W, the lumen of which can reach 48000 LM each; Long life; High brightness; According to the needs of the site, the lamp caps can turn to one or two directions; Each lamp cap can revolve 360 horizontally and vertically; It can achieve overall lighting; The radius of lighting area may reach 100-150m
* pneumatic lifting poles, 3-section telescopic poles; The specific location- trough ensures the cylinder to rise straightly, safe and reliable; Lifting limit of the mast can reach 4m
* the switch of each lamp can be controlled by remote control with 30m; The lifting of the cylinder can be controlled by hand or by the remote control, simple and flexible;
* Imported branded gensets with low energy consumption; It can work for 13 hours once it is filled with the fuel; With 220V power supply, it can work for a long time continuously;
* the whole is made of the high-quality metal materials, compact, stable; There is the damping device, which ensures that it can work normally under the harsh environment and terrible weather conditions; Water proof; The level of wind resistance can reach 8;
* the system of the lighting fixture and cylinder and gensets are the split-type structure, easy to combine, take apart and store; The caster and rail wheel are installed on the bottom of the gensets which are flexible to run on the rugged road and rail.
|
Tech Data
|
Value
|
Unit
|
|
1
|
Type
|
204QAK
|
204QFK
|
----
|
|
2
|
Light System
|
Voltage
|
220
|
220
|
V
|
|
Lamp number
|
2
|
2
|
PCS
|
|
Lamp type
|
Metal halide
|
High pressure sodium
|
---
|
|
Power
|
2X400
|
W
|
|
IP
|
IP65
|
----
|
|
Light control
|
Manual
|
---
|
|
Single bulb lumen
|
36000
|
48000
|
Lm
|
|
Average life
|
10000
|
18000
|
H
|
|
Color temperature
|
4000
|
2000
|
K
|
|
3
|
Pole
|
Lift
|
Pneumatic
|
---
|
|
Lifting time
|
30
|
S
|
|
Lift height
|
3.5
|
3.5
|
M
|
|
Cylinger section number
|
3
|
Section
|
|
4
|
Generator
|
Fuel
|
Gasoline 93#
|
---
|
|
Generator brand
|
Mindong Honda
|
--
|
|
Voltage
|
220
|
V
|
|
Starting
|
Manual
|
---
|
|
Rate power
|
2.0
|
KW
|
|
Max power
|
2.2
|
KW
|
|
Fuel tank volume
|
15
|
L
|
|
5
|
Continuous working
|
Full tank fuel
|
13
|
H
|
|
220VAC
|
Continuous
|
----
|
|
|
frame structure
|
Steel structure
|
-----
|
|
|
Dimensions
|
65X55X195
|
CM
|
|
|
Weight
|
85
|
89
|
Kg
|
|
